Economical Small 4 Axis Robot Arm Supplier For Picking And Placing
Product description:
Industrial robots are widely used in manufacturing industry, not only in automobile manufacturing industry, but also 3C industry, lens, food and food and small daily necessities are applied to industrial machines and robots. In the manufacture of some complicated products, industrial robots can replace human workers, which can greatly improve the economic efficiency.This industrial robot is a small-load robot with a large load of 1kg, repeatability accuracy of 0.05mm and arm span of 540mm.No control cabinet.Its performance is stable and reliable.Open robot system, can develop a variety of handling programming.
Feature:
1. Easy to learn and operate,can learn programming in 15 minutes.
2. Competitive price.
3. Repetitive position accuracy of 0.05mm.
4. The open robot system can develop a variety of handling procedures;
5. No control cabinet
6. Can be easily integrated with camera.
Robot parameter
| products Name | 4 Axis Mini Industrial Robot Arm |
| Working space | 540mm |
| Number of axis | 3 axis |
| Installation | Floor or desktop |
| N.W. | 13kg |
| Repeat Positioning Accuracy | ±0.05mm |
| Maximum Payload | 1kg |
| Power Consume | 0.4KVA |
| Power supply | Input:Single phase 110V-240V 50Hz Output:DC 24V(400W) |
| Voltage rating | 220V |
| External communication | WIFI/Ethernet |
| Application | Loading and unloading, sorting,palletizing |
| Safety standard | ISO 9001-2015 |
| Control software | Hulkbot Studio |
| Drive System | Steper motor |
| Working condition | -10°C~60°C |
| I/O | Input 5/Output 5 |
Working rang of each axis
| Axis | Working Range | Max Speed |
| Axis 1 | ±160° | 360°/s |
| Axis 2 | -42°~85° | 360°/s |
| Axis 3 | -20°~100° | 360°/s |
| Axis 4 | ±165° | 500°/s |
Application fields
1. Our products have been used by German companies
2. Vocational education
3. Packing machine feeding
4. 3C industry
5. Auto parts fields
6. Small daily necessities manufacturing and packaging
7. Automated production line
8. Automated package line
9. Loading and unloading of small objects

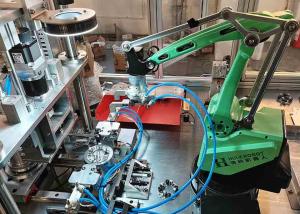

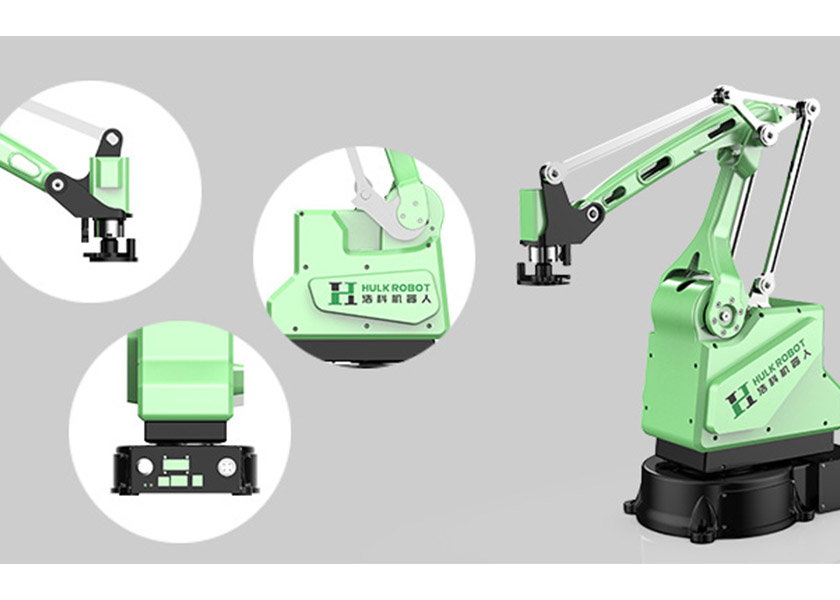

Detailed images
|
|
Economical Small 4 Axis Robot Arm Supplier For Picking And Placing Images
|
