Easy Operate Industrial Small Palletizing Robotic Arm For Packaging And Placing
Product description:
This is small palletizing robotic arm,with payload of 1kg,repetitive position accuracy of 0.05mm,easy operate,programming logic is simple.Hulk palletizing robotic arm is suitable for palletizing of small objects,such as auto parts,3C parts,and other small objects.due to a wide selection of end effectors,the palletizing robotic arm provide great flexibility.whether you need to pick ,place or boxes,we can provide you suitable solution according.The small palletizing robotic arm is smart and reliable,little maintenance is required.
Feature:
1. The programming logic is simple,easy to learn and operate.
2. Wide selection of end effectors.
3. The repeatable positioning accuracy is less than 0.05mm.
4. Wide range of applications.
5. Wireless tablet control.
6. Little maintenance is required.
Robot parameter
| Model | HK5404 HK5403 |
| Working space | 540mm |
| Number of axis | 4 Axis ,3Axis |
| Installation | desktop |
| N.W. | 13kg |
| Repeat Positioning Accuracy | ±0.05mm |
| Maximum Payload | 1kg |
| Power Consume | 0.4KVA |
| Power supply | Input:Single phase 110V-240V 50Hz Output:DC 24V(400W) |
| Voltage rating | 220V |
| External communication | WIFI/Ethernet |
| Application | Small parts picking, loading, sorting,paletizing |
| Safety standard | ISO 9001-2015 |
| Control software | Hulkbot Studio |
| Drive System | Steper motor |
| Working condition | -10°C~60°C |
| I/O | Input 5/Output 5 |
Working rang of each axis
| Axis | Working Range | Max Speed |
| Axis 1 | ±160° | 360°/s |
| Axis 2 | -42°~85° | 360°/s |
| Axis 3 | -20°~100° | 360°/s |
| Axis 4 | ±165° | 500°/s |
Application fields
1. Our products have been used by German companies
2. Auto parts fields
3. Laptop parts grab
4. Loading and unloading
5. Vocational education
6. Visual position detection
7. Palletizing
8. Food processing
9.3C area

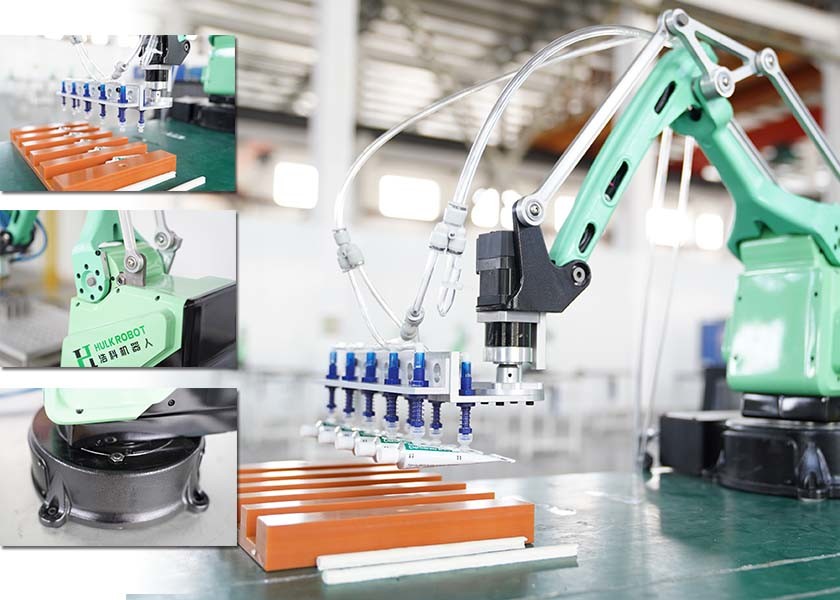

Detailed images
