Cost effective collaborative manipulator small collaborative robotic arm for pick and place.
Product description:
This is a small 4-axis robot with a payload of 1kg, a working range of 540mm, and an accuracy of 0.05mm. It is used for loading and unloading most small parts and small objects. It is widely used in automated production, such as Picking and placing,Palletizing,Gluing, Sorting, Electrical inspection, etc. The collaborative robot arm has low cost, supports drag-and-drop teaching, supports collision emergency stop, does not require human guards, and is easy to integrate. It usually performs repetitive boring or unsafe tasks, while humans perform more valuable manual tasks upstream and downstream.
Feature:
1. Easy to learn and operate,can learn programming in 15 minutes.
2. No control cabinet.
3. Suitable for most small parts and small objects
4. Wide range of applications.
5. Supporting draging teaching.
6. simple programming
Robot parameter
| products Name | Small collaborative robotic arm |
| Working space | 540mm |
| Number of axis | 3 axis ,4 axis,5 axis |
| Installation | Desktop |
| N.W. | 13kg |
| Repeat Positioning Accuracy | ±0.05mm |
| Maximum Payload | 1kg |
| Power Consume | 0.4KVA |
| Power supply | Input:Single phase 110V-240V 50Hz Output:DC 24V(400W) |
| Voltage rating | 220V |
| External communication | WIFI/Ethernet |
| Application | Load and unload |
| Safety standard | ISO 9001-2015 |
| Control software | Hulkbot Studio |
| Drive System | Steper motor |
| Working condition | -10°C~60°C |
| I/O | Input 5/Output 5 |
Working rang of each axis
| Axis | Working Range | Max Speed |
| Axis 1 | ±160° | 360°/s |
| Axis 2 | -42°~85° | 360°/s |
| Axis 3 | -20°~100° | 360°/s |
| Axis 4 | ±165° | 500°/s |
Application fields
1. Our products have been used by German companies
2. Auto parts fields
3. Packing machine feeding
4. 3C production line
5. Vocational education
6. Small-size objects production line
7. Automated production line
8. Palletizing

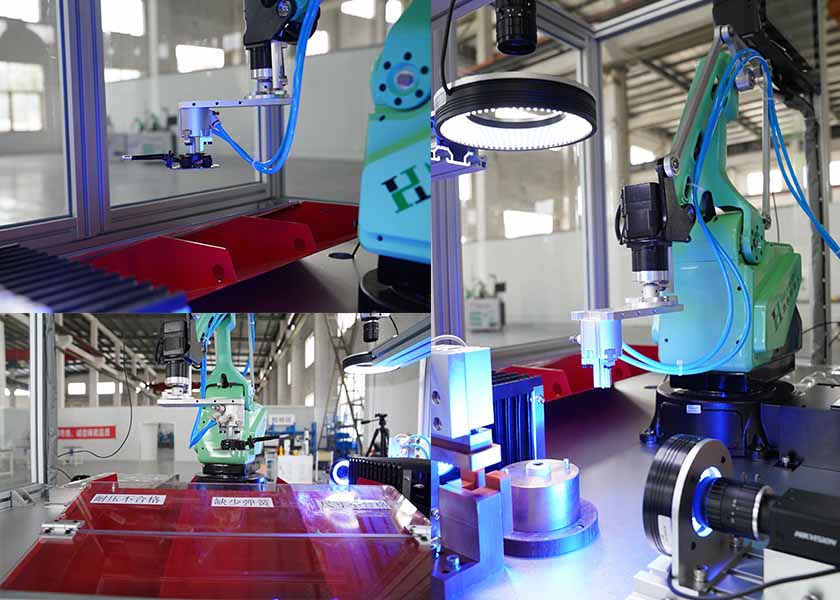

Detailed images
